APsystems - Now Available

Innovation, redefined

APsystems continues to raise the bar globally in solar power innovation and their unique microinverter architecture overcomes the limitations associated with typical string inverters.

APsystems Microinverter Advantages

  • Dual & quad maximum power point tracking (MPPT)
  • Long range Zigbee mesh communications
  • Less roof hardware required, making for fast installation time
  • Enhanced safety through AC architecture
  • Cost effective module level performance monitoring
  • CEC listed

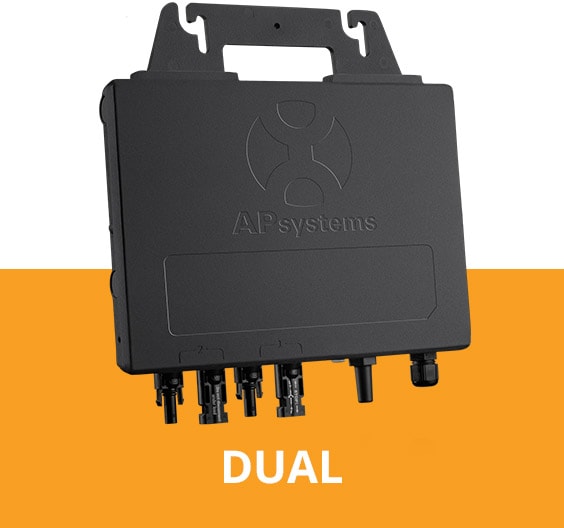

YC600

With an innovative design and features, APsystems YC600 is a single-phase, advanced microinverter that serves two modules with dual independent MPPT.

Grid interactive with Reactive Power Control (RPC) technology, APsystems YC600 meets the Clean Energy Council (CEC) requirements, while simplifying installation and reducing logistic costs.

Features

  • Single unit connects to two solar modules
  • 2 input channels with independent monitoring functions
  • Highest peak AC power output 300W per channel
  • Accommodates PV panels from 250 - 440W*
  • Common AC trunk cable for mix and match compatibility between YC600 and QS1 models.
  • 2.4GHz Zigbee mesh network communication
  • CEC listed

VIEW PRODUCT


Jason Higginson, Senior Director of Marketing for APsystems, explains why the YC600 is the most advanced microinverter in the solar industry.

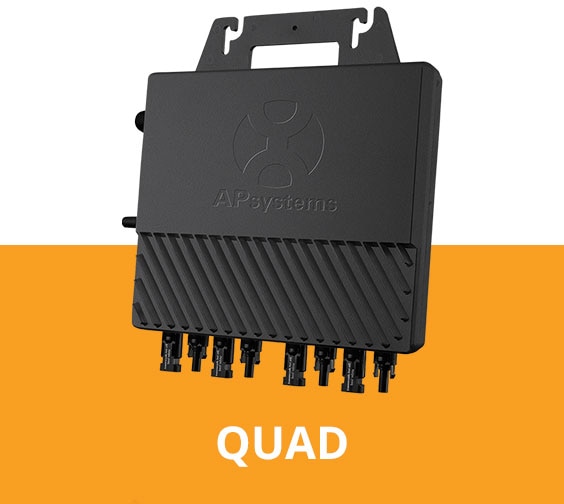

QS1

The first of its kind, APsystem's QS1 is a four-module, high-power microinverter designed for residential and commercial applications.

Offering enhanced capability while cutting installation times, APsystems QS1 offers an unprecedented level of power with four independent MPPT channels.

Features

  • Single unit connects to four solar modules
  • Four input channels with independent monitoring functions
  • Highest peak AC power output 300W per channel
  • Accommodates PV panels up to 440W*
  • Common AC trunk cable for mix and match compatibility between YC600 and QS1 models.
  • 2.4GHz Zigbee mesh network communication
  • CEC listed

VIEW PRODUCT


Accessories

Common AC trunk cable for mix-and-match compatibility between models.

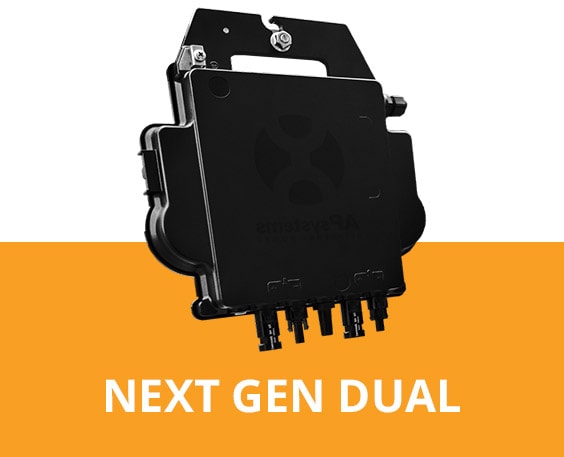

DS3 - Coming Soon

APsystems, 3rd generation microinverter coming soon!

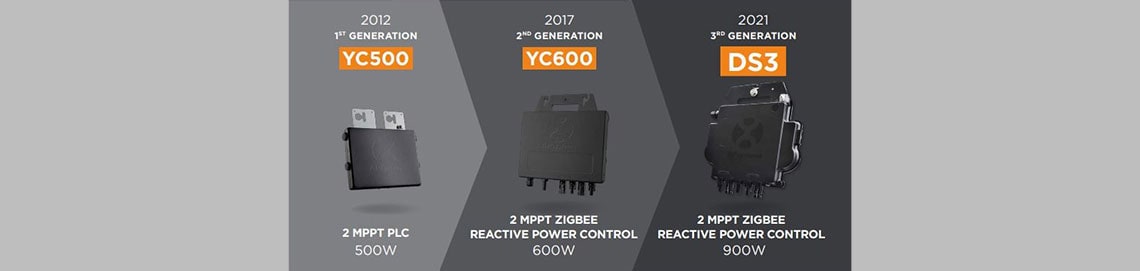

Combining the technological innovations from previous YC500 and YC600 generations, APsystems DS3 is a groundbreaking, grid interactive microinverter that will revolutionise the Australian solar residential and commertial marketplace.

Features

  • 50% higher power and increased efficiency
  • Single unit connects to two solar modules
  • 2 input channels with independent monitoring functions
  • Highest peak AC power output 450W per channel
  • Accommodates PV panels up to 600W
  • Common AC trunk cable for mix and match compatibility between YC600 and QS1 models.
  • 2.4GHz Zigbee mesh network communication

Contact the RFI Customer Experience Team for a release date.

*400W maximum for CEC guideline compliance.
