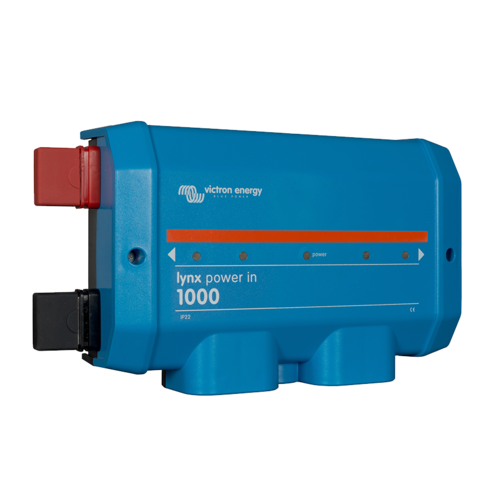

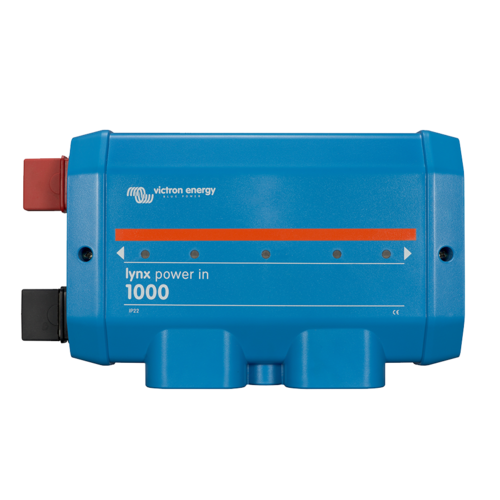

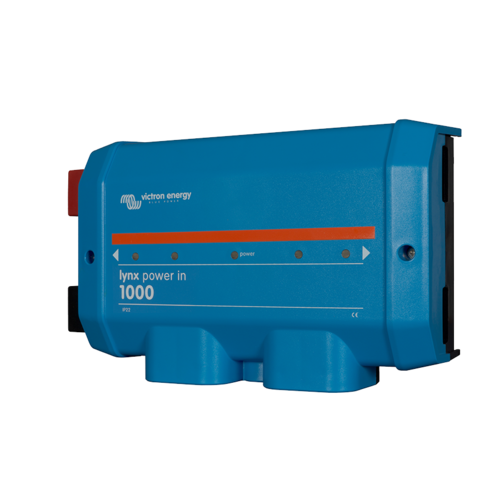

Victron Lynx Power In; 1000V 4-way Busbar

A modular DC bus bar, used to connect batteries and charging devices to a common DC distribution system.

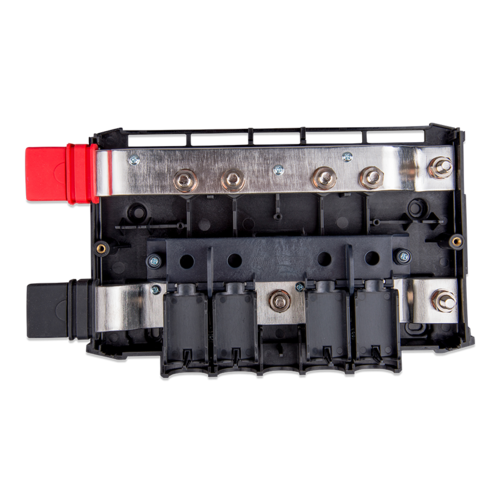

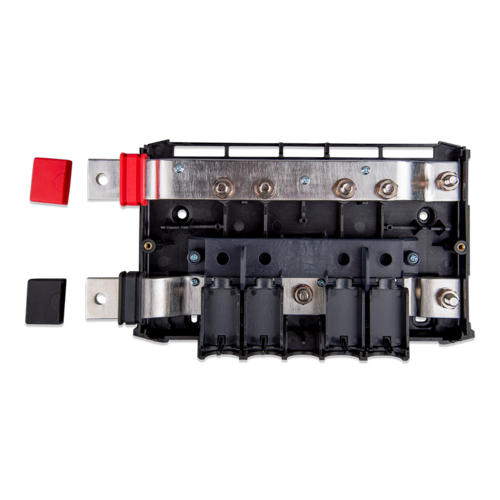

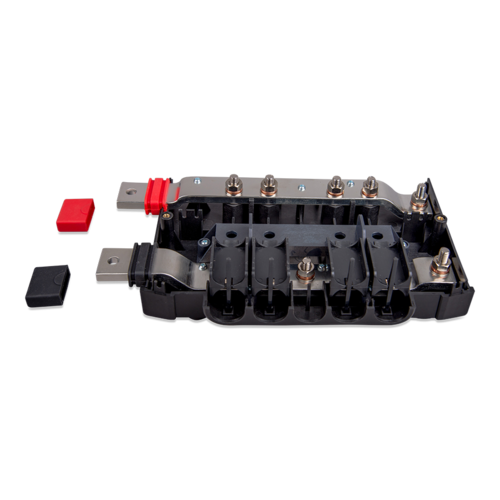

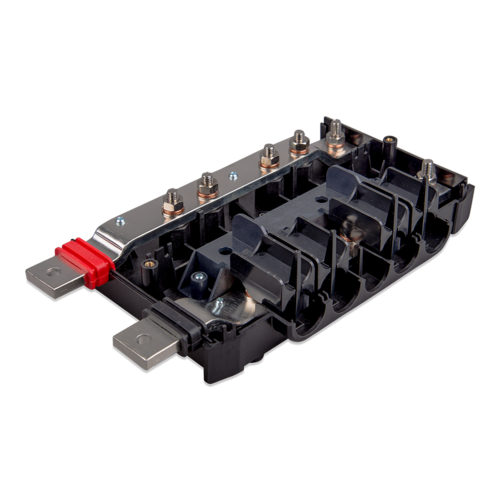

The Lynx Power In module is a DC Bus Bar for connection of batteries and DC equipment to a common line. Each module contains a pair of 30x8mm negative and positive DC bus bars with 4 x M8 bolts on which to connect feeder cables. Modules may be connected in series to expand the capacity of the Bus Bar System. It is rated to a max of 1000A DC and can accommodate cables of up to 24mm OD (approx 150mm2). An additional M8 bolt to facilitate grounding of the negative bus bar is provided.
