Victron Lynx Distributor; 1000V Busbar monitors 4 fuses

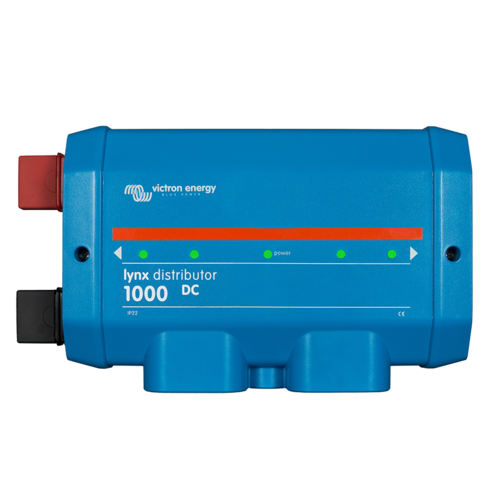

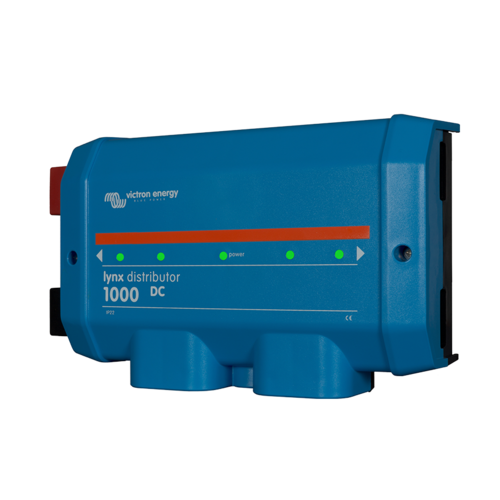

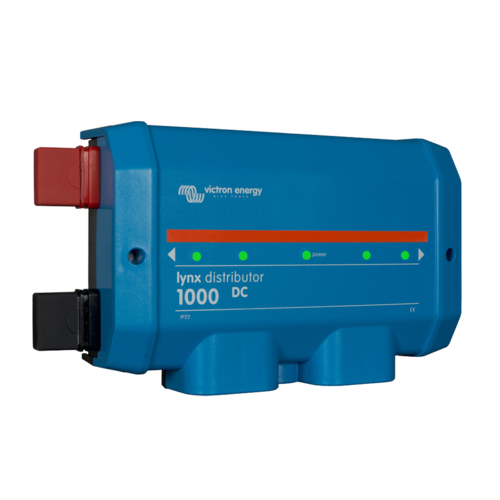

A modular DC bus bar, with locations for four DC fuses on the positive bar. It will monitor the status of each fuse, and indicate its condition with a LED on the front.

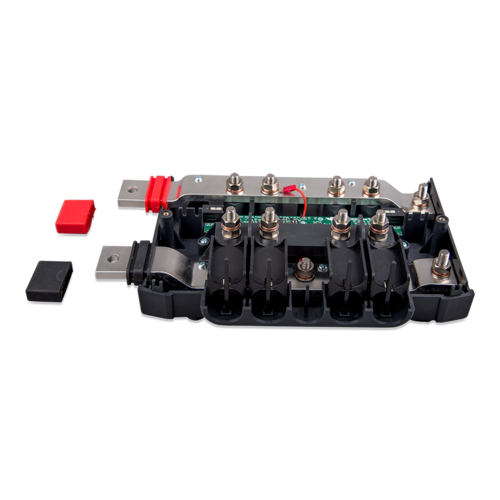

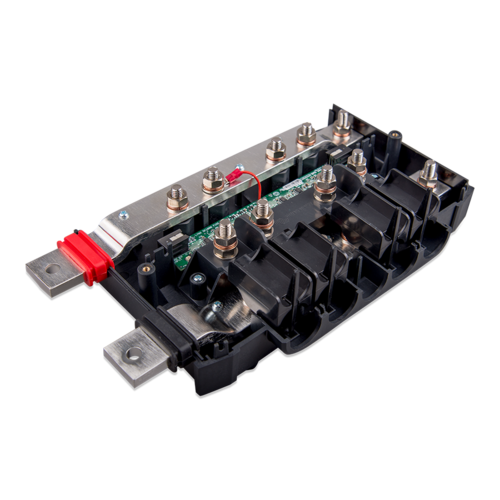

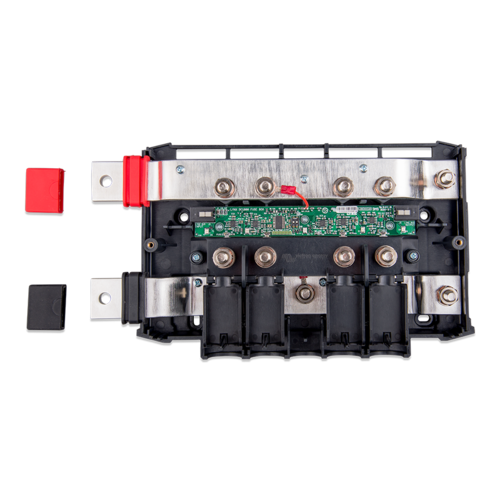

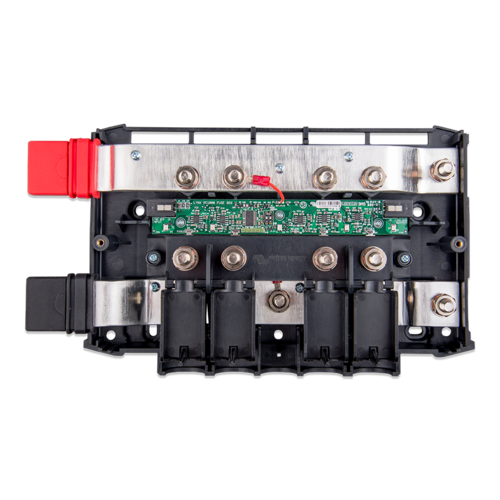

The Lynx Distributor module is a positive-leg fused* DC Bus Bar for connection of batteries and DC equipment to a common line. Each fuse* is monitored and it's status displayed via a LED readily visible on the front of the casing. Each module contains a pair of 30x8mm negative and positive DC bus bars with 4 x M8 bolts on which to connect feeder cables. Modules may be connected in series to expand the capacity of the Bus Bar System. It is rated to a max of 1000A DC and can accommodate cables of up to 24mm OD (approx 150mm2). An additional M8 bolt to facilitate grounding of the negative bus bar is provided. * Fuses not included. VN-MF-xxx Mega fuses ordered separately to suit the application.
