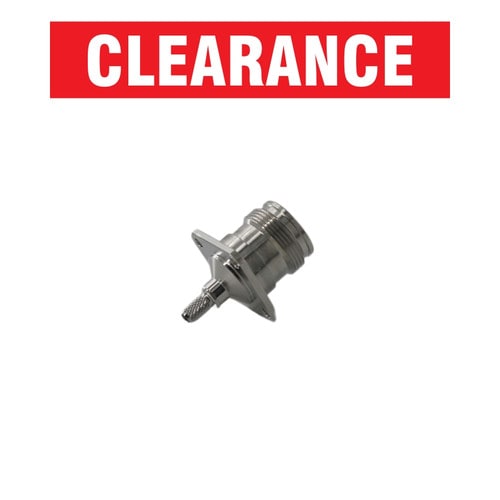

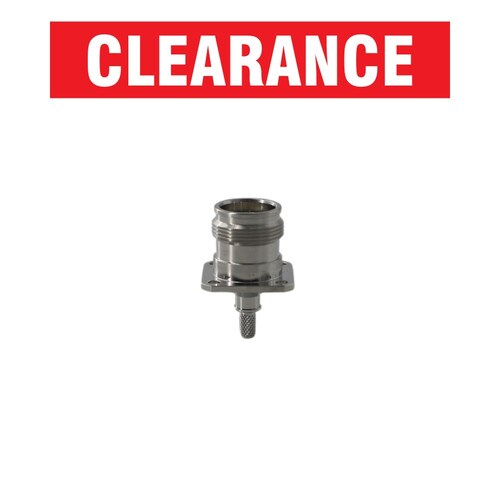

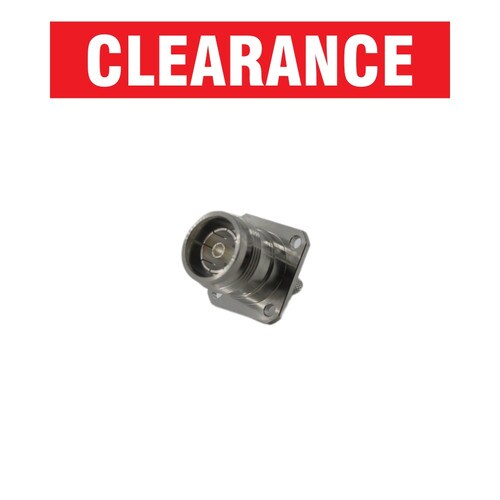

Pulse 4.3-10 Panel-Mount Female Connector. Captive/Crimp Jack for RG142 Cable

SKU: D43-124

Pulse® is a trusted brand in the field of RF coaxial connectors with a comprehensive range of high specification components to suit a vast array of applications.

Clearance Item - Available strictly while stocks last

4.3-10 Panel-Mount Female Connector

Captive/Crimp Plug for RG142 Cable
Inner Contact spring finger ‘Push Fit’
Outer Contact Hex Crimp Size 5.4

Center contact: Brass / Silver Plating
Outer contact: Brass / Silver Plating
Body: Brass / Trimetal Plating
Dielectric: PTFE

Impedance: 50 Ohm
Frequency Range: DC~6GHz
Insulation Resistance: ≥5000MΩ
Center contact resistance: ≤1.5 mΩ
Outer contact resistance: ≤1.5 mΩ
Dielectric Strength: 2500V rms (AC)
Working voltage: 900V rms
Insertion Loss: @DC~3.0GHz ≤0.1dB
VSWR @DC~1.0 GHz: ≤1.10
VSWR @1.0~3.0 GHz: ≤1.25

Durability (matings): ≥500 cycles
Mechanical Shock Test Method: MIL-STD-202, Method 213, Test Condition G
Vibration Test Method: MIL-STD-202, Meth. 204, Cond. B
Installation Mode of Center Contact: Push Fit
The Size of Crimp Tool: 0.429 inch
Temperature Range: -65°C to +165°C

RoHS: Compliant
Regulatory Compliance / Certification: ISO 9001:2015 Compliant
