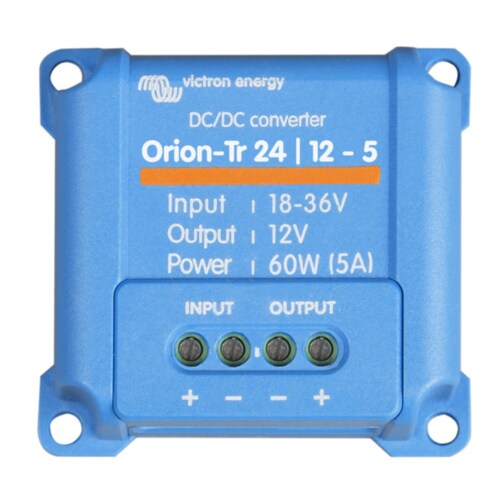

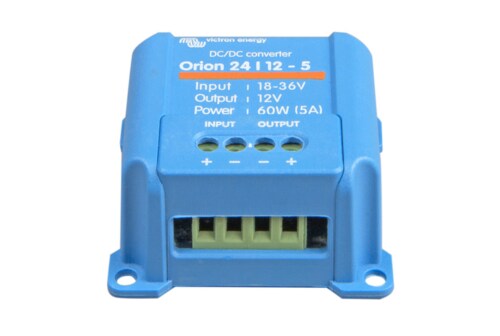

Victron Orion HP DC/DC Converter; 5amp 24/12v

SKU: VN-OR-NI-24-12-5
Victron Orion-Tr DC-DC Converters are available in isolated and non-isolated versions.
High efficiency Using synchronous rectification, full load efficiency exceeds 95%. IP43 protection When installed with the screw terminals oriented downwards. Screw terminals No special tools needed for installation.
Max Cable Crosssection3.3 mm2 / AWG12
DC ConnectionsScrew Terminals
Output Current Continuous5:00 AM
Output Voltage V12.7 V
Off Load Current mA< 20 mA
Max Continuous Load Current7:00 AM
Input Voltage Range V18-35 V
Galvanic IsolationNo
Efficiency Percent95%
