Out of stock

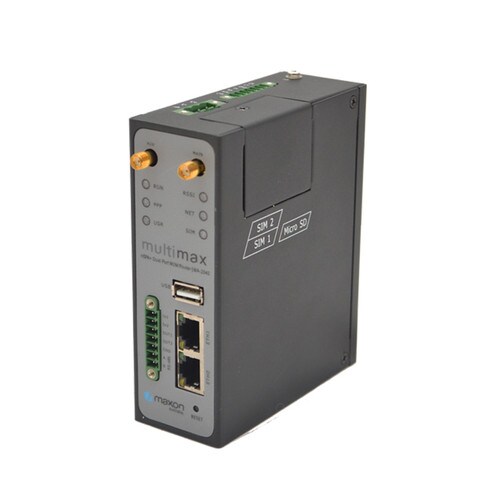

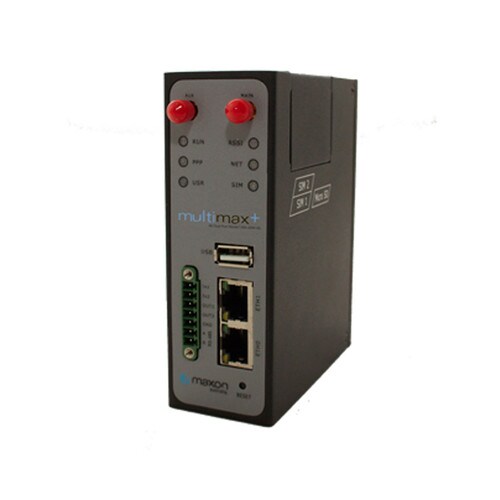

Maxon Multimax 4G Industrial Router

SKU: MA-2040-4G-KIT-D

With multiple connectivity options, the Multimax MA-2040-4G is a rugged router suitable for a diverse range of industrial M2M applications. The Multimax features dual-SIM capabilities as well two Ethernet ports, which provides advanced redundancy functionality. The 4G (LTE) connectivity means you can now have up to ten times faster internet connections over the air. This 4G Router is perfect for applications such as video streaming to expandable device monitoring, the Multimax is an adaptable, multi-purpose device for all your data needs.

RFI's Maxon brand of industrial modems are the perfect solution for your next IoT or M2M application.

Key Features:

- Band 28 - 150 Mbps Downlink, 50 Mbps Uplink
- Dual-SIM redundancy
- 2 x Configurable Ethernet ports (LAN+LAN or LAN+WAN backup)
1 x RS232, 1 x RS485, 1 x USB 2.0 host
- 2 x digital inputs, 2 x digital outputs
- Supports FOTA
- Supports DDNS
- Supports SMS Remote Control
- Supports SSH, TCP Server, TCP Client, UDP Server, UDP Client, FTP Client
- Built in IP stack
- 6 x LEDs - 2 x SMA Antenna (Main and Diversity)

- Robust metal enclosure with flexible mounting options
- Supports Modbus/RTU to Modbus/TCP gateway
- Wide Input Voltage Range (9-60V)

Kit includes:

- 1 x (MA­-2040­-4G) Modem
- 2 x (ANT-SMA(M)) Antenna
- 2 x (CON-­4225) Phoenix (7 Pin) Connector
- 1 x (CON­-4235) Phoenix (3 Pin) Connector
- 1 x (CAB-5620) Ethernet Cable
- 1 x Phoenix (7 Pin) Connector to DB9 (Female) Serial Cable
-1 x (MA-5825) Wall Mounting Kit OR (MA-5725) DIN Mount

Kit Note: For external PSU please refer to PWR-4315 (not supplied in Kit)



3G Shutdown replacement for:

- Multimax 3G MA-2040-KIT
- MA-2010C*


* It is advised to contact RFI technical support team to discuss your application prior to transitioning from these products
