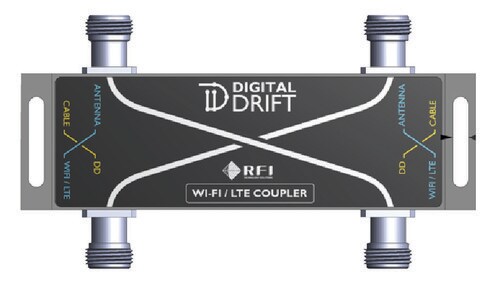

Digital Drift Wi-Fi/LTE Coupler, N-female (50 Ohm)

SKU: DD-CPLR-7026-NF

This coupler is part of the Digital Drift family and is typically used when Wi-Fi/LTE/5G services are used on Radiating coaxial cables in underground mines.

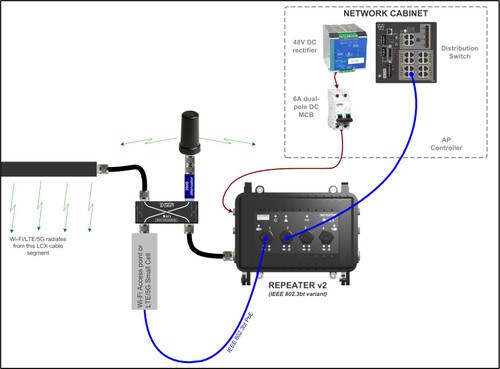

This coupler offer a low cost solution for hybrid's covering cellular bands from 694 to 2700MHz, with low loss Passive Inter-Modulation performance and high isolation. It also allows for the VHF (150MHz to 185MHz) to pass through. Typically used to combine VHF and Wi-Fi/LTE/5G into a radiating cable or antenna.

Features:

-Broadband 698-2700MHz covering all cellular bands.
-4 port, 2x2 hybrid coupler
-Low Insertion Loss
-Good isolation (Ports 1 & 2) across full bandwidth >23dB
-Suitable for use in high power multi-carrier transmission systems
-Manufactured to a low PIM -150dBc (3rd Order 2x43dBm carriers) rating
-100W per port power rating
