Pulse 4.3-10 Right-Angle Male Connector. Solder/Crimp Plug for RG214 Cable

SKU: D43-103

Pulse® is a trusted brand in the field of RF coaxial connectors with a comprehensive range of high specification components to suit a vast array of applications.

Clearance Item - Available strictly while stocks last

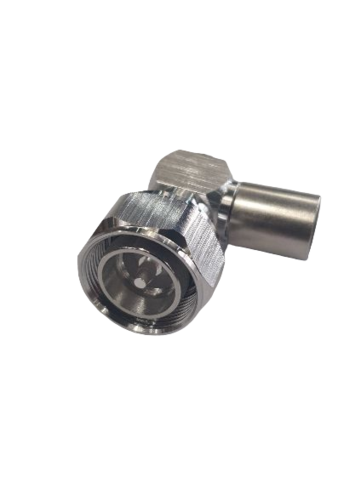

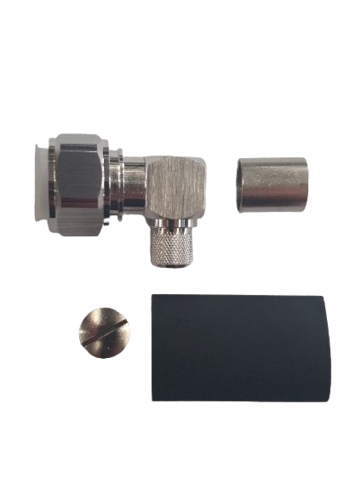

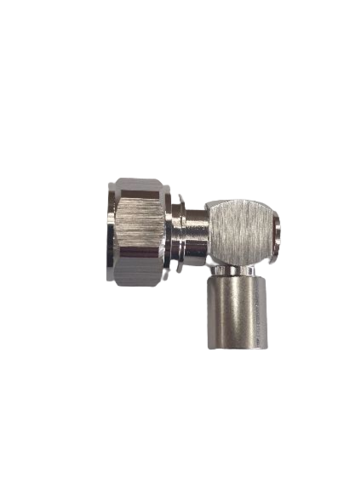

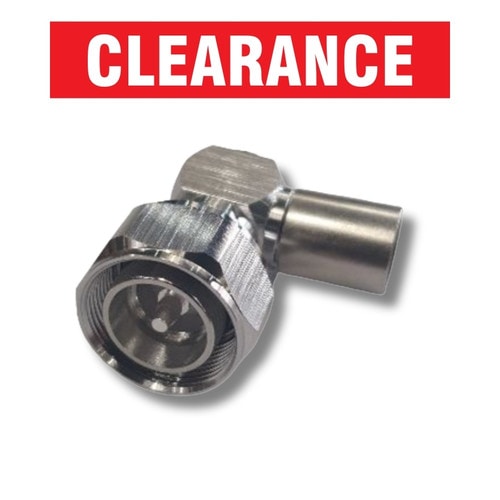

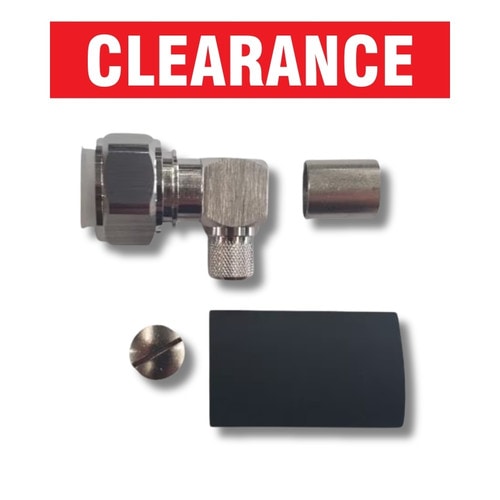

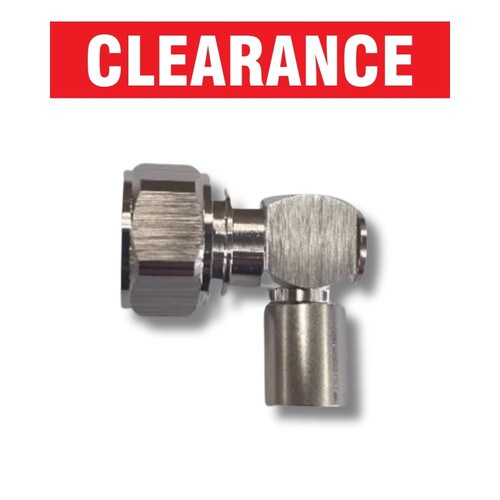

4.3-10 Right-Angle Male Connector


Solder/Crimp Plug for RG214 Cable
Solder Inner Contact
Outer Contact Hex Crimp Size 10.9


Inner Conductor: Pin Brass / Silver Plating
Inner Conductor Socket: Tin Bronze / Silver Plating
Insulator: PTFE/TPX
Body & Outer Conductor: Brass / Trimetal Plating
Gasket: Silicon Rubber
Nut: Brass / Trimetal Plating

Impedance: 50 Ohm
Frequency Range: DC~6GHz
Insulation Resistance: ≥10000MΩ
Dielectric Withstanding Voltage: 2500V rms
Operating Voltage: 1400V rms
Center contact resistance: ≤1.5 mΩ
Outer contact resistance: ≤1.5 mΩ
Insertion Loss @DC-2.7 GHz: ≤0.20dB
VSWR @0.8-1.0 GHz: ≤1.15
VSWR @1.7-2.7 GHz: ≤1.25

Durability (matings): ≥500 cycles
Mechanical Shock Test Method: MIL-STD-202, Method 213, Test Condition D
Vibration Test Method Temperature: MIL-STD-202, Meth. 204, Cond. A
Installation Mode of Center Contact: Push Fit
Temperature Range: -65°C to +85°C
RoHS Compliant
ISO 9001:2015 Compliant
