  • UHF Enclosed Dipole 330-380MHz Custom Tuned

Out of stock

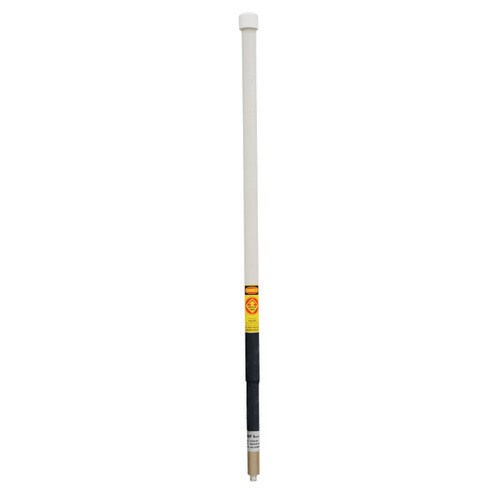

UHF Enclosed Dipole 330-380MHz Custom Tuned

SKU: COD4-99
The COD4 series antennas are a range of fibreglass enclosed vertical dipoles ideal in local coverage applications. COD4 series antennas deliver extremely broad beamwidths which enhance close-in coverage. They are supplied pre-tuned in set bands and can be held as a stock antenna if required.
COD4-99 Features:
• Ideal for local area coverage
• Available spot tuned to user specified frequencies or in a number of pre-determined band configurations
• Unity gain omnidirectional radiation pattern with excellent null-fill characteristics
• Dual decoupling choke to ensure distortion-free pattern
Frequency Range330 - 380
Base Gain0 to 3 dBd
Power w100
Nominal Gain Dbi2
TerminationN female bulkhead
Mounting area100mm x 25mm diam. alodined aluminium
ConstructionAlodined aluminium elements with white fibreglass radome
Tuned bandwidth4%
Horizontal BeamwidthOmni +/- 0.5dB
Frequency MHz375 - 520
BrandRFI
Weight [kg]0.5
