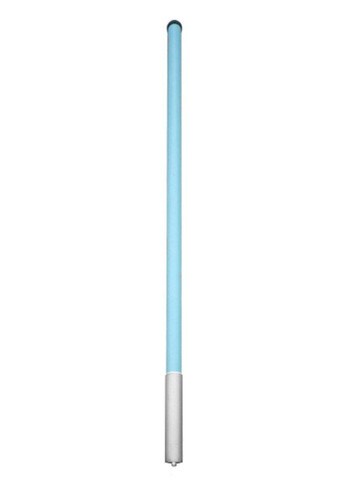

CORPORATE COLLINEAR, 450-512MHz, 5dBd, 3 DEG TILT, -150dBC PIM, 4.3-10 CONNECTOR

SKU: CC450-06-T3-P
These industry leading, full featured corporate collinear arrays allow site operators to combine, with complete integrity, a large number of communications services into a single, low profile antenna solution.
The corporate feed design employed by RFI maintains superior pattern control, allowing gain to be maximised with zero tilt variation over a very broad bandwidth, comparable to that only previously available in exposed dipole array configurations. This is achieved in the preferred form factor of a fully enclosed fibreglass radome, providing a reduction in wind loading, ice loading and tower loading in comparison. The CC450 series have been designed with an exceptional power rating of 500W across the band as well as a Peak Instantaneous Power (PIP) rating of 25kW to cater for the peak voltage levels present in large multi-carrier combining environments. RFI's refined design processes and proven construction methods achieve a PIM rating of –150dBc, further ensuring performance is maintained for the service life of the antenna. CC450-06-P Features: -Extraordinary bandwidth characteristics with superior pattern stability over an extended band coverage -Light weight dipole construction using RFI's patented flexi-PCB architecture, maintains a low centre of gravity reducing tip deflection and sway -DC grounding on all elements for the ultimate in lightning protection and dissipation of static noise -Sealed PTFE insulated cables in harnessing ensure high power capability -150dBc Passive Intermodulation (PIM) rating -25 kW Peak Instataneous Power (PIP) rating -Tilt Versions are NOT field invertible
