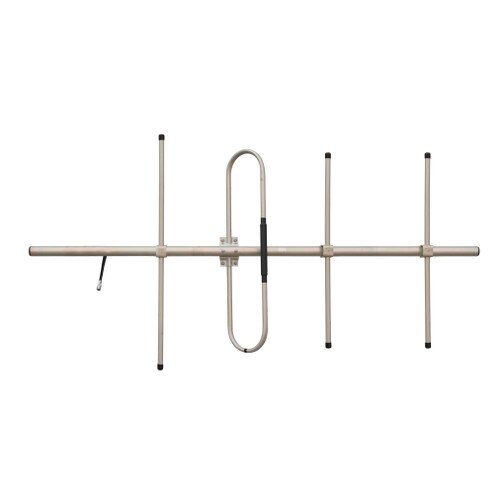

4 Element Yagi 100-250MHz Custom Tuned

The YH04 boom and the elements are constructed from thick walled alodined aluminium tubing. The passive elements are of one piece construction and clamped to the boom with a unique wrap around single bolt bracket. The radiating element is through mounted onto the boom. All fittings and fasteners are made from marine grade stainless steel and self locking nuts are used throughout the assembly to prevent loosening due to vibration. All yagi antennas are directly DC grounded to provide lightning protection and reduced precipitation static noise. Termination is via an N-type female coaxial connector fitted to a short RG213 cable tail. YL and YH yagis are supplied unassembled for ease of handling and are quickly assembled using only basic tools. Colour coding of elements and the boom section further simplify the assembly and installation. • High performance - ideal in long or short haul applications • Controlled Beamwidths - predictable beamwidths and consistently high front to back ratios • Simplified Installation - colour coding and unique single bolt clamps simplify installation
