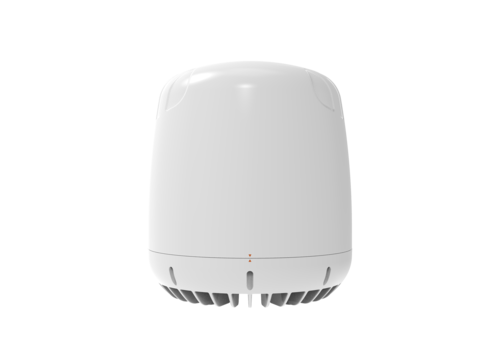

Poynting WaveHunter Cross-Polarised, High Gain, Multi-Directional, 5G/LTE, 617 – 3800 MHz, 6x (4x4) Multi MIMO Marine & Coastal Antenna Array, 4x Dual Band Wi-Fi, 2x GPS/GLONASS, Max. 11dBi Gain (Incl. Pedestal) - Brilliant White

SKU: WHUNTER-1-101


Unleash Powerful Connectivity at Sea: Introducing the WaveHunter™ Antenna Enclosure

Poynting Antennas unveils the WaveHunter™, a revolutionary antenna enclosure designed to transform your cellular experience on the water.

Unleash Your Connectivity Potential:

  • All-in-One CPE Solution: The WaveHunter™ goes beyond just an enclosure. It allows you to integrate your own LTE/5G routers and networking equipment, creating a customized Customer Premises Equipment (CPE) for ultimate flexibility.
  • Scalable Connectivity: The base unit accommodates two routers up to 250 x 150 x 50 mm³, and a user-supplied stacked frame allows for additional equipment integration, making it ideal for various connectivity needs.

Unmatched Performance & Durability:

  • Powered by Pioneering Technology: The WaveHunter™ utilizes Poynting's renowned Artificial Magnetic Conductor (AMC) technology, ensuring exceptional performance.

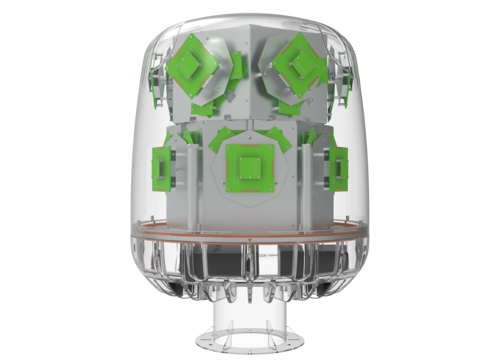

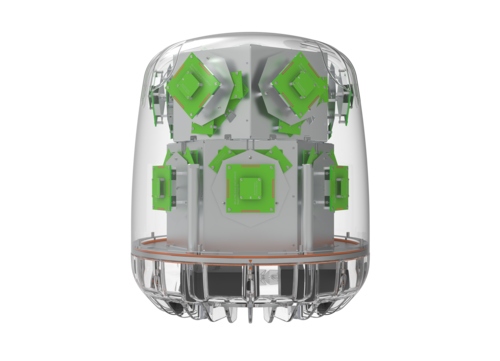

  • 360° Wideband Coverage: The antenna array boasts 12 high-gain, cross-polarized 2x2 MIMO directional antennas arranged in a unique configuration. This delivers exceptional wideband coverage (617 to 960 MHz and 1710 to 4200 MHz) with a peak gain of 11 dBi, perfect for multi-router LTE & 5G bonded and aggregated deployments.
  • Built to Endure: The WaveHunter™ is built to withstand the harsh realities of the sea. Its weatherproof and waterproof enclosure (IP 65 rating) ensures long-lasting performance in any weather condition.

In essence, the WaveHunter™ antenna enclosure is a game-changer for marine and coastal connectivity. It offers a flexible, scalable, and powerful solution, backed by Poynting's cutting-edge technology. Whether you need to enhance cellular reception on super yachts, ferries, or harbor buildings, the WaveHunter™ delivers the performance and durability to keep you connected at sea.

Unmatched Connectivity at Sea: Key Features and Applications of the WaveHunter Antenna

The WaveHunter antenna is specifically designed to conquer the challenges of marine and coastal environments, delivering exceptional cellular and Wi-Fi connectivity for a variety of applications.

Key Features:

  • Broad Bandwidth: Operates across a wide range of frequencies (617-960 MHz, 1710-4200 MHz), ensuring compatibility with various cellular networks.
  • Powerful Signal Strength: High-gain directional antennas with a peak gain of 11 dBi provide strong and reliable signal reception, even in weak coverage areas.
  • Dual-Band Wi-Fi: Offers both 2.4 GHz and 5 GHz Wi-Fi bands for flexible and efficient wireless connectivity.
  • Scalable Connectivity: Can accommodate up to 6 routers for maximized data throughput, ideal for supporting multiple devices or users.
  • Built to Endure: The weatherproof and water-resistant enclosure (IP 65) with UV and saltwater resistance ensures long-lasting performance in harsh marine conditions.

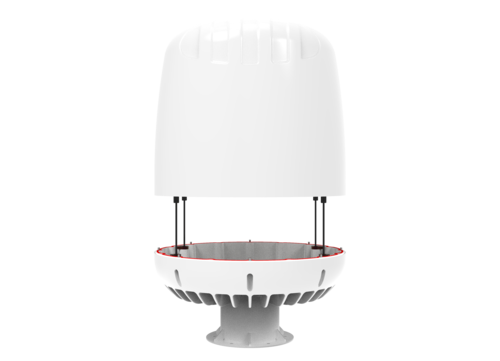

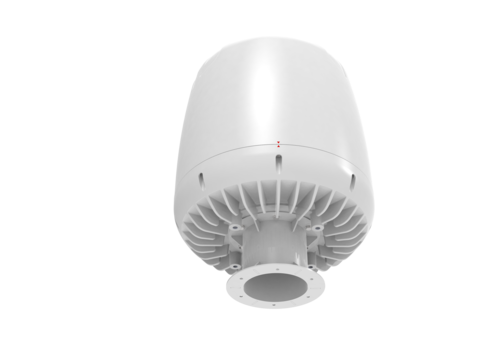

  • Efficient Heat Management: An aluminum heatsink base effectively dissipates heat, maintaining optimal performance for devices integrated within the WaveHunter.

Applications:

  • Marine Vessels: Ideal for super yachts, commercial vessels, cruise ships, ferries, private yachts, and towing vessels, significantly enhancing cellular (LTE/4G/5G) and Wi-Fi reception.
  • Harsh Environments: Perfectly suited for use on harbor buildings and buoys, withstanding the challenges of the marine environment.
  • Enhanced Communication: Provides reliable and high-speed connectivity, critical for applications requiring strong signal reception, such as increased system transmission reliability and improved communication at sea.

In essence, the WaveHunter antenna is a powerful and versatile solution for marine and coastal applications. Its combination of wide bandwidth, strong signal strength, dual-band Wi-Fi, scalability, and durability makes it the ideal choice for those who need reliable communication on the water.
