Victron Orion IP67 DC/DC Converter; 20amp 24/12v

SKU: VN-OR-IP67-24-12-20

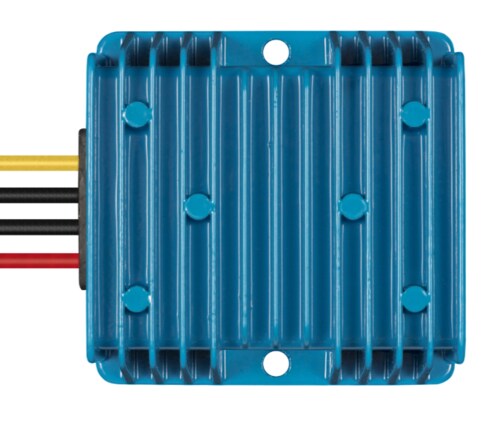

Orion IP67 24/12 DC-DC Converters Completely encapsulated: waterproof, shockproof and ignition protected Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin. Available in 3 models Orion IP67 24/12-5 Orion IP67 24/12-10 Orion IP67 24/12-20
Completely encapsulated: waterproof, shockproof and ignition protected Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin. Extra-long input and output cables Thanks to the cables of 1.8 meters in length, intermediate cable interconnections to increase length even more will in most cases not be needed. This is an important reliability increasing feature in an area were IP67 protection grade is needed. Wide input voltage range With 15 to 40 Volts input range, a stable output is ensured during surges or sags due to other equipment connected to same battery. Protected against overheating It can be used in a hot environment such as a machine room.
Under Voltage Restart14V
Under Voltage Shutdown13V
DC ConnectionsTwo input and output cable - 1.8m
Output Current Continuous20 A
Output Voltage V12
Off Load Current mA< 50m A
Input Voltage Range V14 - 40
Galvanic IsolationNo
Efficiency Percent95%
Dimensions74 x 74 x 32mm
BrandVictron
