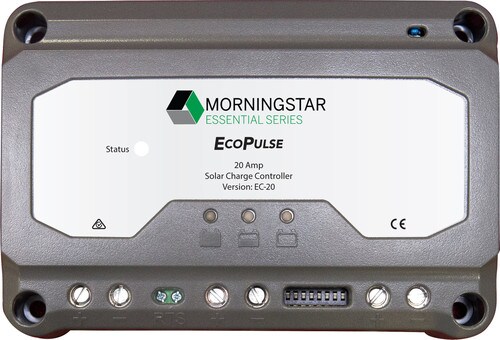

Morningstar EcoPulse PWM Solar Regulator; 20A 12/24V

SKU: EC-20
20A PWM Charge Controller for 12/24V batteries.
The EcoPulse is a pulse width modulation (PWM) solar charge controller within the Morningstar Essential Series™ which provides essential off-grid battery regulation functions. This controller is easy to use and was developed for residential and leisure consumer applications. Key Features and Benefits Metered and non-metered versions Four stage battery charging Dusk til dawn lighting control Load control Electronic and environmental protections
Suggested Solar Capacity for 24V Batteries [W]600
Length [mm]105
Width [mm]153
Type of ChargerPWM Solar Regulator
Load Control [A DC]20
Remote CommunicationsNo
Suggested Solar Capacity for 12V Batteries [W]300
Mounting Wall
Temperature Compensated ChargingYes - temp sensor sold separately
Adjustable Battery Charging ParametersNo
Low Voltage Disconnect (LVD)Yes
Maximum Output Current [A DC]20
Battery TypeFlooded, Sealed
Operating Temperature Range [°C]-40°C to +45°C
Display InterfaceLED
IP RatingIP20
BrandMorningstar
Weight [kg]0.4
Depth [mm]55
