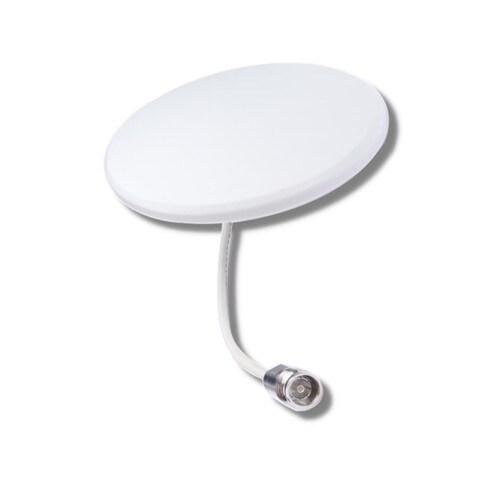

SISO Low Profile Omni Ceiling Antenna - 698-960MHz&1710-4000MHz, N (F)

SKU: DAS6940LC-SOC150-N

The DAS6940LC-SOC150-N is a compact, PIM rated, indoor SISO omni-directional antenna antenna, covering 4G &5G Cellular bands, 689-960 MHz & 1710-4000MHz. This multi-band design eliminates the need to purchase different antennas for each frequency and is ideal for all fixed in-building coverage applications.

RFI's Compact Low profile LTE DAS antenna is a high performance, PIM rated DAS antenna, offering Omni directional coverage solutions to suit indoor UHF & LTE coverage in a low profile aesthetic. The multi-band capability covers both UHF and 4G bands including 690-960MHz & 1710-4000MHz, eliminating the need to purchase different antennas to suit different bands of operation. This range is ideal for all fixed in-building coverage applications
Features Include:
• Low Profile compact form factor
• Coverage across multiple cellular and WLAN bands
• Ideal for DAS deployment for in-building coverage solutions
• Excellent -150dBc PIM performance
• 1 x 300mm tail terminated with N type female connector

Connector	N female
Frequency Range	1710 - 2700, 380 - 520
Nominal impedance	50
Power w	50
Nominal Gain Dbi	2 / 2.2 / 4.5
Dimensions	266(W) x 18(H)
VSWR	<2.5:1 / <2.0:1 / <2.0:1
Termination	Single 300mm tail with N (F) connector
Construction	White ABS
Passive IM 3rd Order (2x20W) dBc	-150
Brand	RFI
Weight [kg]	0.33
