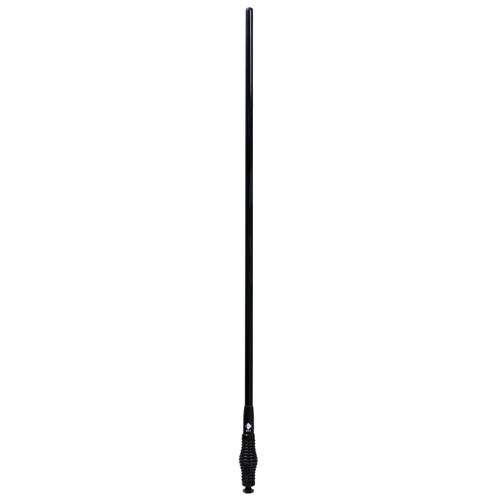

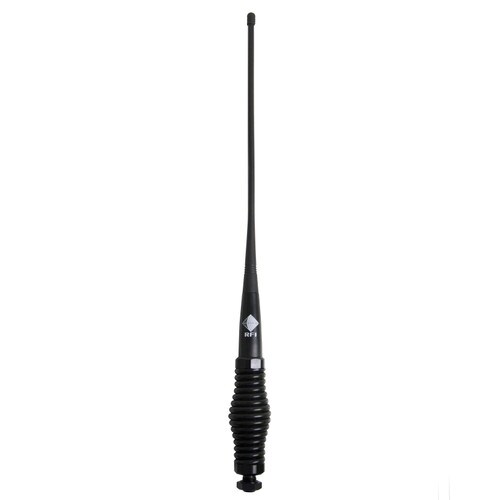

RFI UHF 5dBi Collinear Antenna (477MHz); 5m FME(F) & UHF(M) Adaptor + CD34 Whip - Black

SKU: CDR5000-B+CD34
The CDR5000 series is a light weight version of our CDQ5000 which is ideal for mounting on guards, mirrors or bull bars. It utilises our Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability and employs our Q-Fit® removable whip system.
CDR5000-B+CD34 Features: The antennas we supplied with our medium duty spring assembly which included 5 metres of low loss 9006 cable terminated with an FME female connector and includes a UHF to FME adaptor. Also includes an additional CD34 whip (black). Features: • Patented PCB based Meander™ collinear design offering the ultimate performance & robustness. • 5 dBi gain across the full 477 MHz UHF CB band. • Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security • Totally ground plane independent
Connector VHFFME female
PackagingRetail style plastic bag with header card
Whip MaterialPCB radiating element housed in tapered high impact fibreglass
Whip Length mm930 / 410
Cable And Connector5.0m 9006 supplied terminated with an FME female connector and supplied with an FME to UHF adapter
TuningSupplied pre-tuned
Band477MHz
Frequency Range470 - 490
Power w25
Nominal Gain Dbi5-Apr
VSWR<1.5:1
Radome Diameter Mm16
Tuned bandwidthFull. No tuning required
Frequency MHz477
Mounting 13mm threaded stud
BrandRFI
