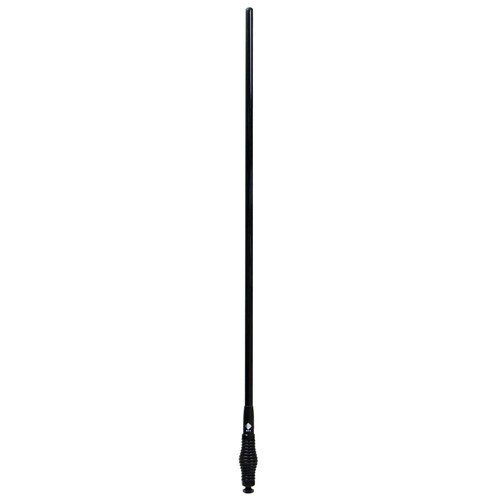

RFI UHF 5dBi Collinear Antenna (477 MHz); 5m FME(F) & UHF(M) Adaptor - Black

SKU: CDR5000-B
The CDR5000 series is a light weight version of our CDQ5000 which is ideal for mounting on guards, mirrors or bull bars. It utilises our Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability and employs our Q-Fit® removable whip system.
Features: The antennas we supplied with our medium duty spring assembly which included 5 metres of low loss 9006 cable terminated with an FME female connector and includes a UHF to FME adaptor. Features:
• Patented PCB based Meander™ collinear design offering the ultimate performance & robustness.
• 5 dBi gain across the full 477 MHz UHF CB band.
• Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security • Totally ground plane independent
Connector VHFFME female
PackagingRetail style plastic bag with header card
Whip MaterialPCB radiating element housed in tapered high impact fibreglass
Whip Length mm930
Cable And Connector5.0m 9006 supplied terminated with an FME female connector and supplied with an FME to UHF adapter
TuningSupplied pre-tuned
Band477MHz
Frequency Range470 - 490
Power w25
Nominal Gain Dbi5
VSWR<1.5:1
Radome Diameter Mm16
Tuned bandwidthFull. No tuning required
Frequency MHz477
Mounting 13mm threaded stud
BrandRFI
