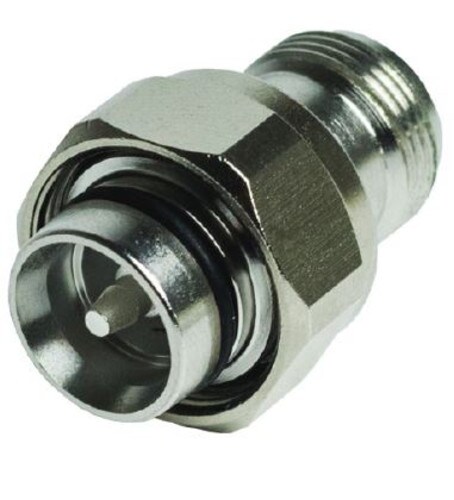

Pulse Coaxial Adaptor. Straight 4.3-10 Male Plug to Type-N Female Jack
Pulse® is a trusted brand in the field of RF coaxial components with a comprehensive range of high specification products to suit a vast array of applications.
Login for pricing
Pulse Coaxial Adaptor

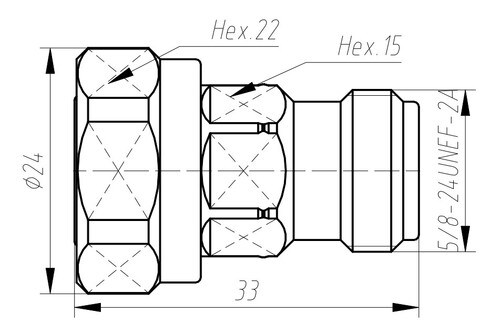

Straight 4.3-10 Male Plug to Type-N Female Jack
Inner Conductor: Tin-Bronze / Silver Plating
Outer Conductor & Body: Brass / Trimetal Plating
Insulator: PTFE Gasket Silicone Rubber Nut Brass / Trimetal Plating
Impedance: 50 Ohm
Frequency Range: DC - 6.0 GHz
> Insulation Resistance: ≥5000MΩ
Dielectric Withstanding Voltage 2500V rms
Operating Voltage 1400V rms
Centre Contact Resistance: ≤1.0mΩ
Outer Contact Resistance: ≤0.6 mΩ
Insertion Loss @DC-2.7 GHz: ≤0.17dB
VSWR @0.8-1.0 GHz: ≤1.08
VSWR @1.7-2.7 GHz ≤1.10
PIM3 @1800MHz: ≤-155dBc （2*43dBm)
Durability (matings): ≥500 cycles
Mechanical Shock Test Method: MIL-STD-202, Method 213, Test Condition D
Vibration Test Method: MIL-STD-202, Meth. 204, Cond. A
Sealing Class: IP68 24hr, 1m, 20℃
Salt spray test standard: IEC 60068-2-52(14 days alternating salt spray test)
Temperature Range: -45°C to +85°C
RoHS Compliant
ISO 9001:2015 Compliant
Pulse Type-N Female RF Coaxial Adaptors:
| Item # | Description |
| N-10 | Straight Type-N Female Jack to Type-N Female Jack |
| N-46 | Bulkhead Type-N Female Jack to Type-N Female Jack |
| N-246 | Right-Angle Type-N Male Plug to Type-N Female Jack |
| A43-102 | Straight 4.3-10 Male Plug to Type-N Female Jack |
| A43-106 | Straight 4.3-10 Male Plug to Type-N Female Jack (Low PIM) |
| A-29 | Straight BNC Female Jack to Type-N Female Jack |
| A-06 | Straight Type-N Female Jack to BNC Male Plug |
| A-74 | Straight SMA Male Plug to Type-N Female Jack |
| A-92 | Straight SMA Female Jack to Type-N Female Jack |
| A-18 | Straight TNC Male Plug to Type-N Female Jack |
| A-04 | Straight Type-N Female Jack to UHF Male Plug |
| N-48 | Type-N Tee Female/Female/Female |
